Electricidad Automotriz

TRADUCCION DE CONTROL DE BATERIA






Items



1. Voltage exceeding 12.35 volts


2. with the engine stopped, turn on lights, fans, thermal lunette (causing a consumption of 10 to 20 amps), the attention of a battery to remain above the 10.5 volts after a minute of merging.



3. cutting the current consumption the battery voltage has to rise to 11.95 in less than a minute



4. Operate the starter motor, the voltage does not drop below 9.50 volts. normal temperature. low temperatures are allowed to 8.50 volts


5. with the engine at a speed of 3000 r.p.m. must provide a load of 10 amps, the voltage should be stabilized between 13.80 and 14.40 volts. as the battery is charging, the flow should stabilize over 1 amp

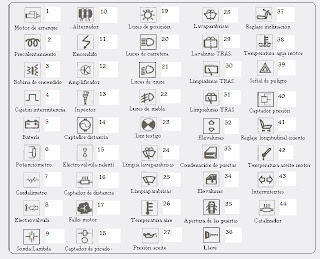

TESTIGOS DEL PANEL







1.starter

2.Preheating

3.Ignition Coil

4.box

5.battery charge
6.potentiometer
7.flowmeter

8.valve

9.lambda probe

10.Alternator

11.on
12.amplifier

13.injector

14.distance sensor

15.valve

16.distanse senser

17.engine failure

18.sensor picodo

19.lighting switch
20.switch

21.high lights

22.low lights
23.lights antitiniebla
24.tell-tale

25.cleaner and washer

26.wiper
27.temperature
28.Oil pressure

29.washer

30.Rear washer
31.rear wiper Rear

32.washer and clean moon rises

33.condemnation of doors
34.moon rises

35.Open door
36.Key Control

37.recline
38.engine coolant

39.emergency lights

40.pressure sensor

41.recline length

42.Engine oil temperature

43.Intermittent

44.catalyst

SISTEMAS ELECTRICOS EN EL AUTOMOVIL



1. A.C.

2. TRANSFORM

3. CONDENSER

4. ANMETER

5. D.C.

6. BRIDGE RECTIFIER

7. POLARIZED CONDENSER

8. OHMMETER

9. BATTERY

10. DIODE

11. INDUCTIVE COIL

12. VOLTMETER

13. BUTTON

14. TRANSISTOR

15. THERNOMETER

16. SWITH

17. ZENER DIODE

18. TOUCH DOWN

19.SWITH BOARD

20. LED

21.

22. PNP TRANSISTOR

23. MAKING DOUGH

24. SWITH BOARD

25. TIRISTOR SCR

26. FUSIBLE

27. LAMP INCABDESENT

28. RESISTANCE

29. TRIAC

30. HORN

31. LAMP PILOT

32. SPEAKER

33. THREE DIVERS

34.POTENTIOMETER

35. RELE

36. ANTENNA

37. CRUSE DRIVERS WHITHOUT CONNECTION

38. ALTERNATOR

39. ENGINE C.C.

40. ENGINE C.C. 2 SPEEDS

41. CRUSE DIVERS CONNECTION WITN
